Engine and Transmission

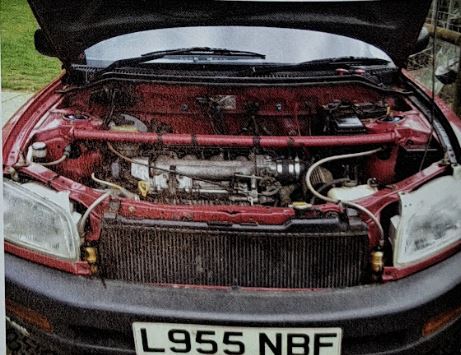

Engine

 Toyota 3S-GE 2.0 16v



Transmission

Stock transmission with uprated engine mounts



Front Differential

Stock free differential



Rear Differential

Stock free differential with seam welded carrier and upgraded solid mounts

Suspension and Steering

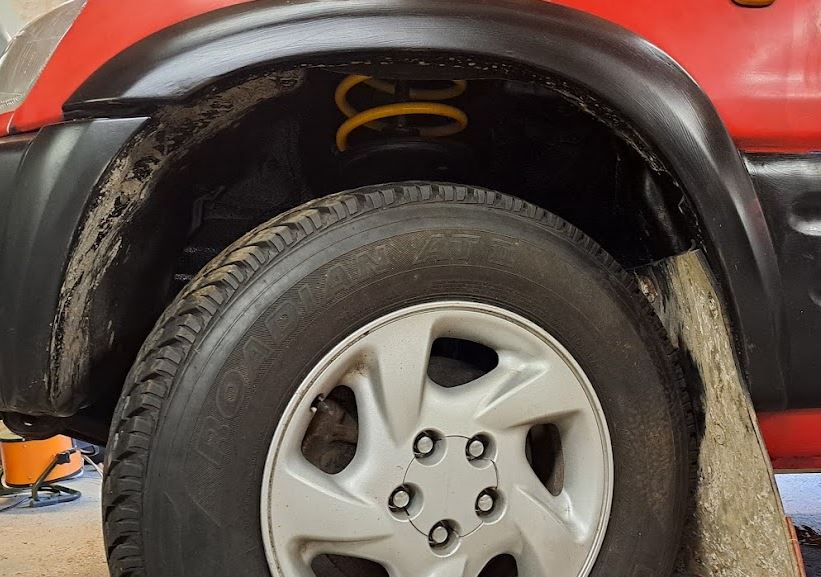

Front

Old Man Emu +1" uprated springs.
KYB Excel-G shock absorbers.
30mm leveling spacers added to the spring platforms increase ground clearance and correct ride height.

Suspension Turrets strengthened with bolt on removable strut brace.
160mm travel.

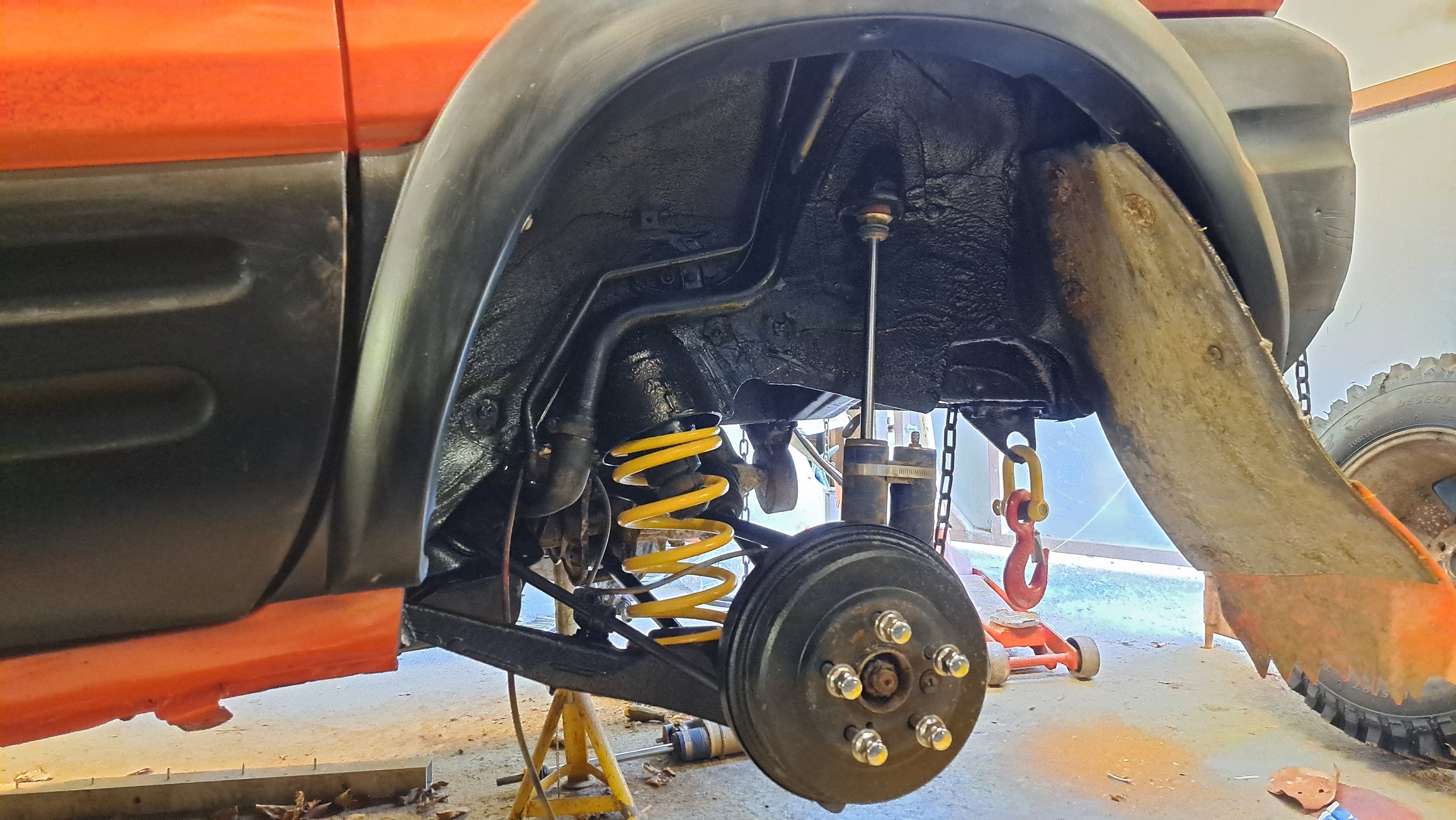

Rear

Old Man Emu +1" uprated  springs.
Fox 2.0" remote reservior shock absorbers.
200mm travel.

Safety and Protection



Roll Cage

MSA and FFSA compliant custom design roll cage evolved from previous experience. 8+ point with screen brace. Front strut bracing and rear suspension mount support. Pointed in to shell around windscreen and B-pillars. Cross door bars pointed in to floor. Gusseting on all possible corners.
Custom design 5mm aluminium bash plate fitted to steel sub-structure to protect engine, gearbox tank and rear differential, running the entire length of the underside.

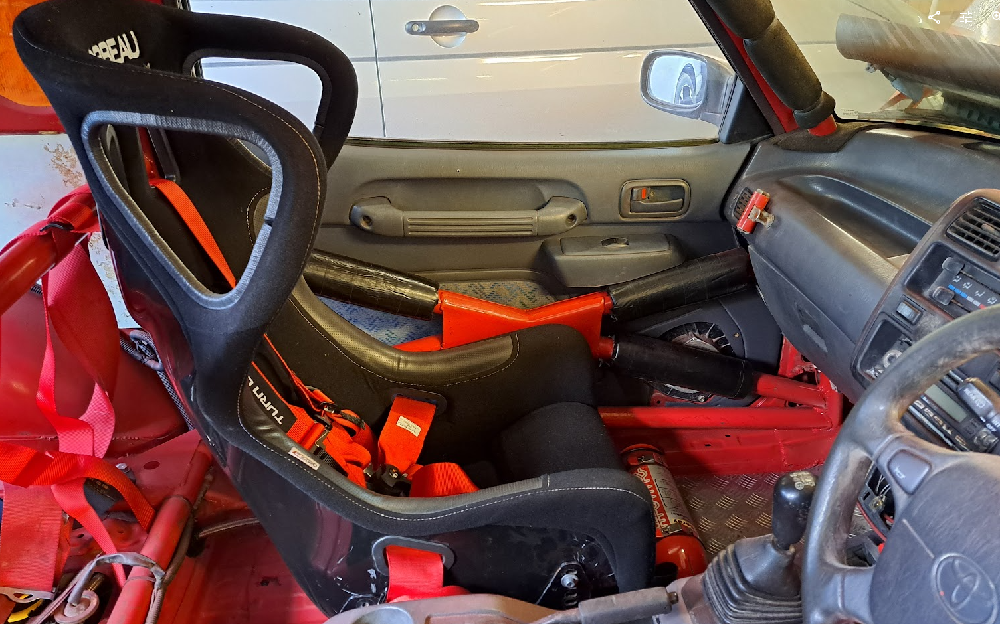

Seats

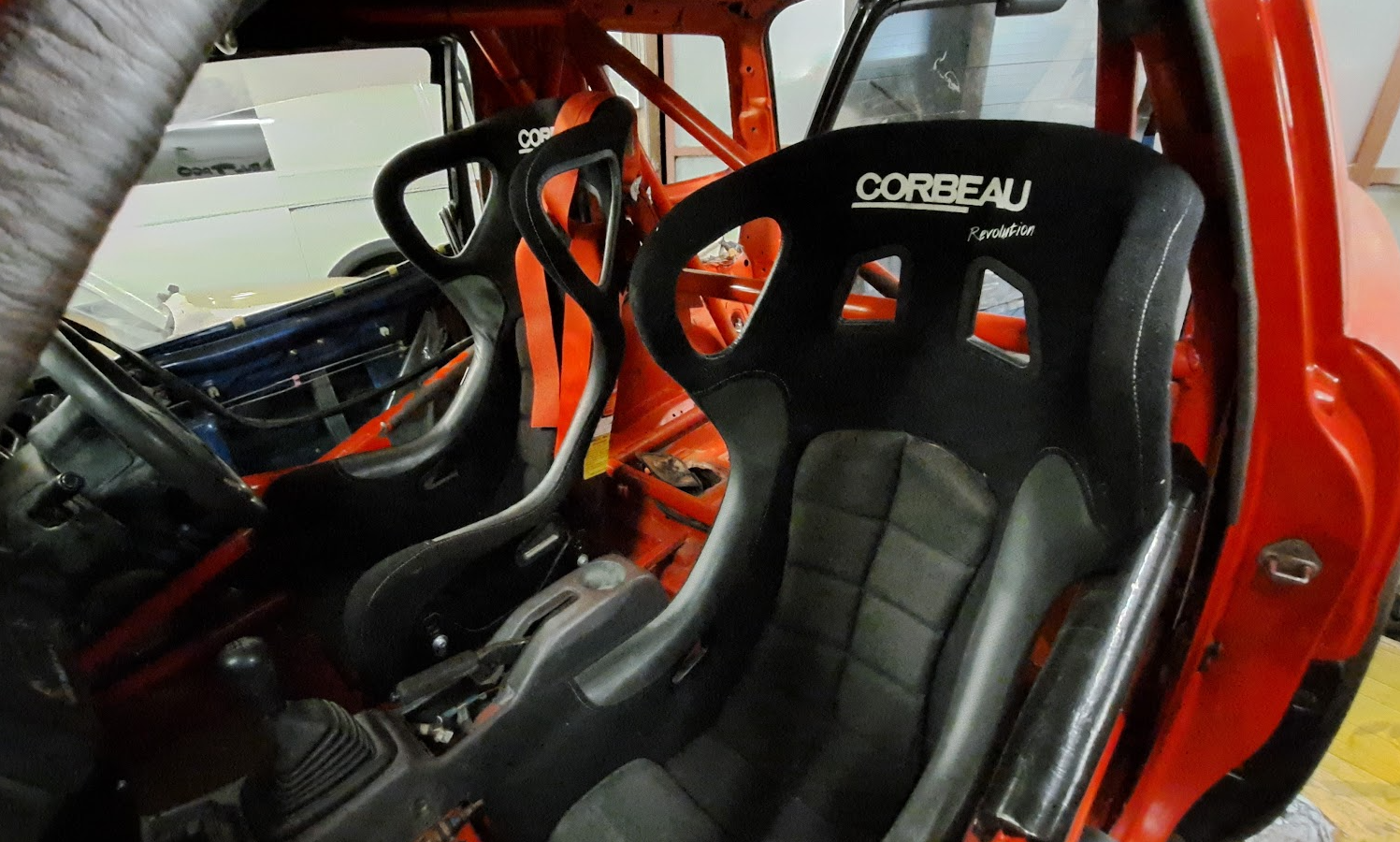

Corbeau Revolution side mount fibreglass shell seats with head restraints.



Seat Subframes

Passenger seat lowered on custom mountings to improve C of G. Passenger hand hold strap fitted for Comp Safari event rules. Belt cutter fitted to dashboard.



Seatbelts

HANS / FHR compliant 6 point harnesses. Window nets fitted.



Battery and Cutout

Battery master cut-off switch with internal and exteral activation.


Fire Extinguisher

Lifeline 2.4 litre AFFF extinguisher mounted in passenger footwell.

Spare Wheel Restraint

Spare not carried for most UK events. When needed, strapped down in rear.
